6th gen Ford Explorer & 2nd gen Lincoln Aviator (2020+) Billet Transmission Mount (TMT01A0)
IN STOCK AND SHIPPING IMMEDIATELY.
Replace the failure-prone stock mount with our billet mount with tunable poly inserts.
Better throttle response
Durable billet aluminum construction with poly inserts
Bushings available in Street, Performance, and Track density
IN STOCK AND SHIPPING IMMEDIATELY.
Replace the failure-prone stock mount with our billet mount with tunable poly inserts.
Better throttle response
Durable billet aluminum construction with poly inserts
Bushings available in Street, Performance, and Track density
IN STOCK AND SHIPPING IMMEDIATELY.
Replace the failure-prone stock mount with our billet mount with tunable poly inserts.
Better throttle response
Durable billet aluminum construction with poly inserts
Bushings available in Street, Performance, and Track density

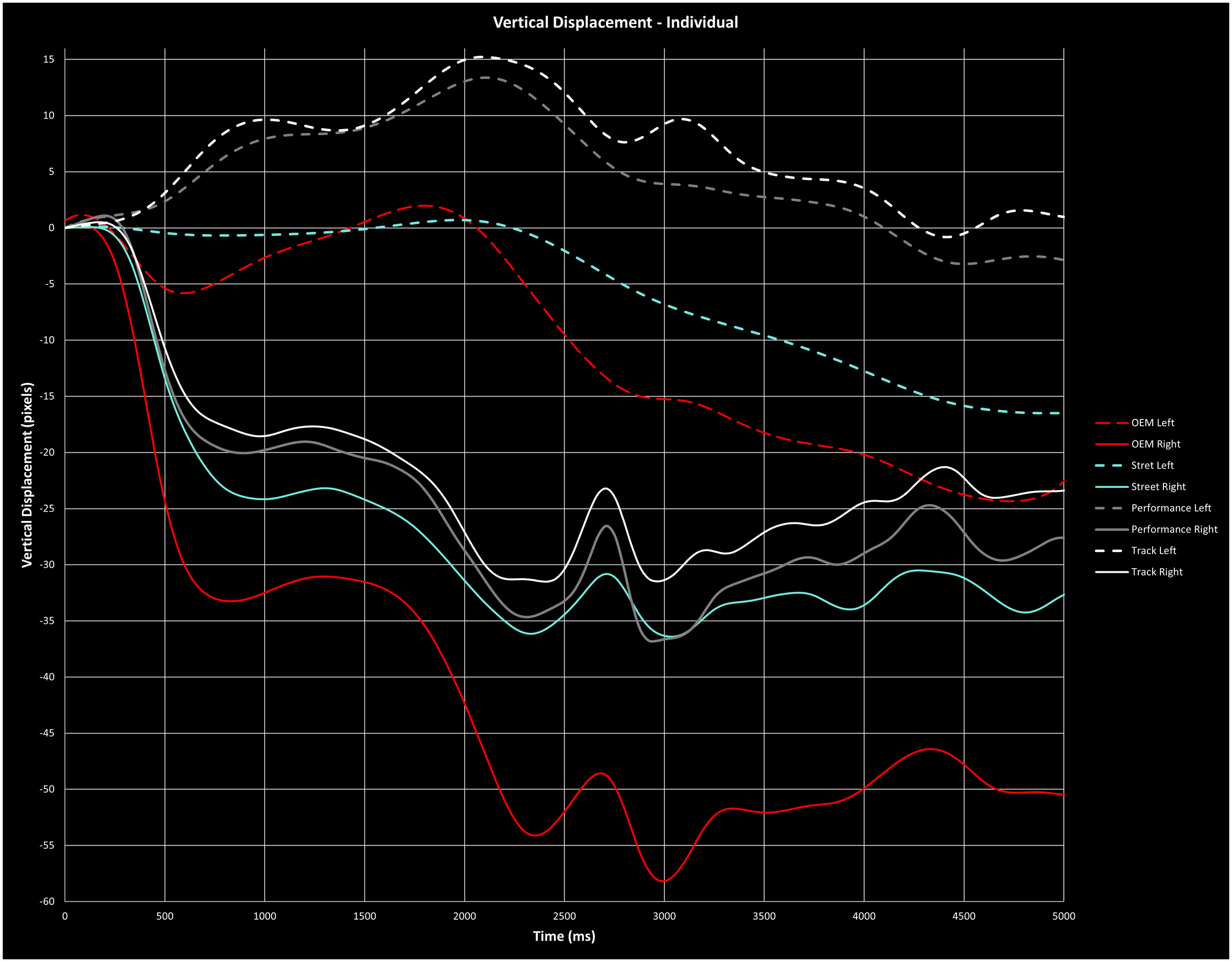

We used motion tracking software to plot the path of the left and right side of the transmission mount during a “mash and go” launch (no brake boost). From the plots you can see earlier resistance to movement and far lower peak travel, meaning less slack in the driveline and less bottom-out effect, resulting in the power getting to the ground sooner with less shock to drivetrain components. Left and right side displacement of the transmission mount. Dashed lines are left bolt, which tends to move up slightly as the engine/trans rotates. Solid lines are right bolt, which is in the primary load path.
Combining the displacements, we can see OEM has a severe bottom-out on launch between 500-1000 ms. 1-2 shift happens at 2500-3000 ms. Peak displacement happens in 2nd gear. Peak displacement reduced by 33% with Street, 56% with Performance, and 64% with Track bushings.
The bushings are available in 3 densities
Street - 33% reduction in movement. No increase in NVH
Performance - 56% reduction in movement. No increase in NVH on our test vehicle, but it’s possible there could be a little bit.
Track - 64% reduction in movement. Slight increase in NVH on our test vehicle. Not noticeable over radio or cracked windows.
U625 (6th gen, 2020+) Ford Explorer models including:
4 and 6 cyl engines
AWD and RWD drivetrains
All trims
U611 (2nd gen, 2020+) Lincoln Aviator, all models
Full Assemblies
With Street Bushings - TMT01A0-S
With Performance Bushings - TMT01A0-P
With Track Bushings - TMT01A0-T
Spare Bushing Set - Street - TMT01A0-BSH-S
Spare Bushing Set - Performance - TMT01A0-BSH-P
Spare Bushing Set - Track - TMT01A0-BSH-T
Individual Parts
Lower Frame - TMT01M1
Upper Frame - TMT01M2
Center Piece - TMT01M3
Lower Bushing - TMT01B1
Upper Bushing - TMT01B2
Bumper Bushing - TMT01B3
